Mango pulp processing
Follow the material from whole-fruit preparation through pulp separation, processing and packaging. Browse individual machines and their line connections.
Choose by process stage
Connect a low-level washing or reception stage to the next machine with an inclined conveyor sized around the fruit and the receiving inlet.
Conveying form · Inclined cleated belt
Explore equipment ↗A roller brush and spray arrangement cleans the fruit surface before manual sorting and pulp extraction. Brush contact is selected to suit the mango skin and condition.
Pictured cleaning method · Brush contact and overhead spray
Explore equipment ↗Bring washed mangoes through an accessible inspection zone so operators can remove unsuitable fruit before it enters the pulp extraction equipment.
Inspection method · Manual selection
Explore equipment ↗The combined mango machine brings peel and stone separation into one extraction assembly before the recovered pulp moves to finishing.
Processing role · Combined peeling, destoning and pulp extraction
Explore equipment ↗Choose by process stage
Two screening stages separate coarse residue and refine the pulp before buffering, optional concentration and thermal processing.
Pictured configuration · Two stages with separate drives
Explore equipment ↗Bring the receiving vessel, product outlet and transfer duty together so refining and downstream treatment can operate as a coordinated system.
Supply scope · Vessel and coordinated transfer assembly

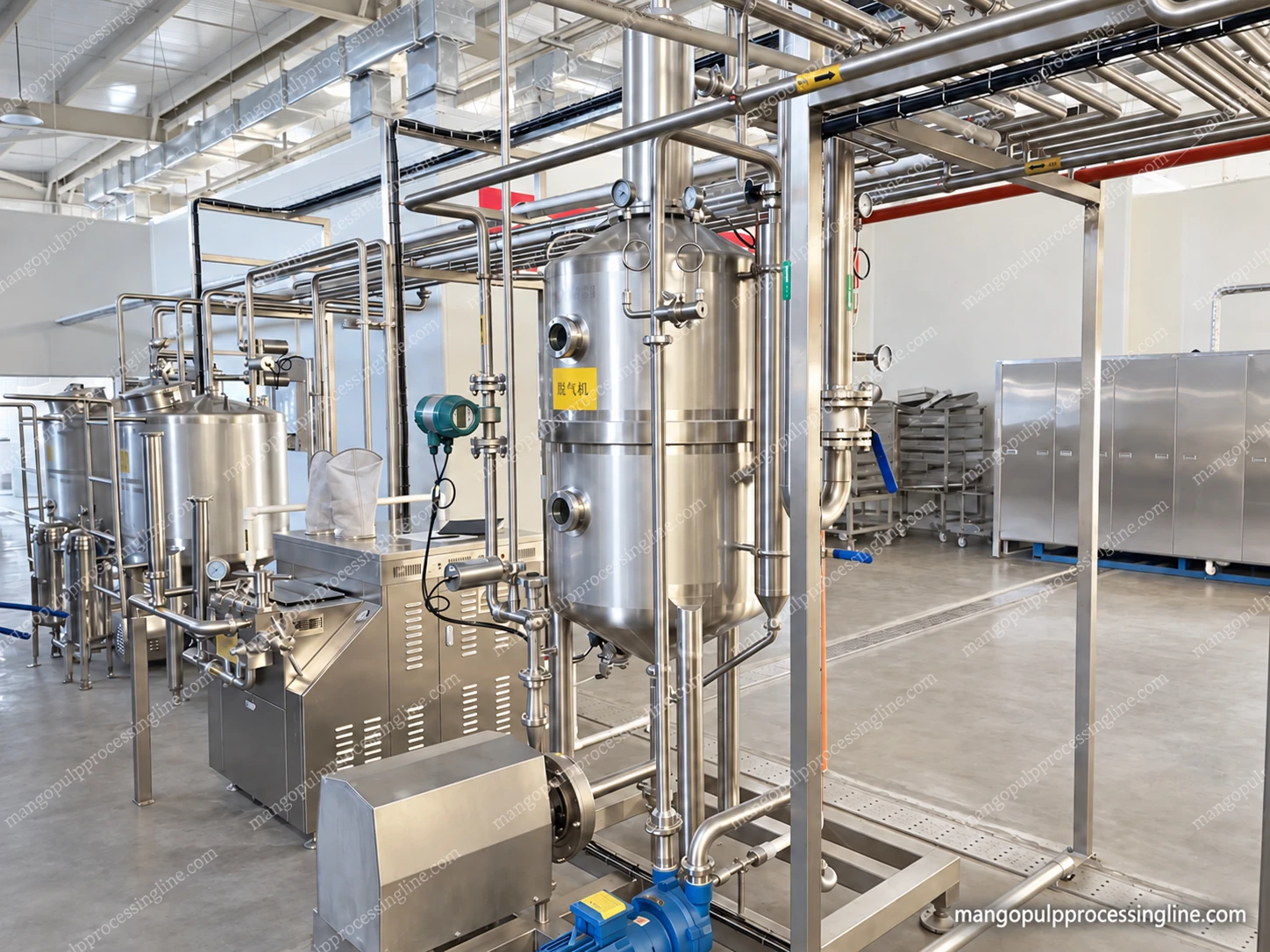

Explore equipment ↗Add vacuum deaeration when the pulp process calls for air removal before downstream treatment. The vessel and its interfaces are selected around the pulp’s flow, temperature and foaming behaviour.
Process · Vacuum deaeration
Explore equipment ↗A forced-circulation arrangement concentrates pulp by removing water, with the circulation loop, heating system and separation vessels selected for the required evaporation duty.
Concentration method · Forced circulation
Explore equipment ↗Choose by process stage
A concentric tube-in-tube system connects product feeding, indirect heating, holding and cooling for pulp and puree before the selected packaging process.
Heat-transfer family · Concentric tube-in-tube
Explore equipment ↗Connect treated pulp to an aseptic bag-filling system with the filling heads, bag interface and drum-handling arrangement selected as one package.
Pictured arrangement · Twin heads and drum roller lanes
Explore equipment ↗Supply and circulate cleaning liquids through a defined product circuit using dedicated tanks, pumps, heating and valve control.
Pictured assembly · Three tanks with pumps and manifold
Explore equipment ↗Move your project forward
A short description is enough to start. Share your raw material, desired product and capacity if known. We can then discuss the equipment and its line connections.
